TUBE OD RANGE: 0.5 – 4.5″ / 12 – 115 mm
COOLING SYSTEM: Water-cooled

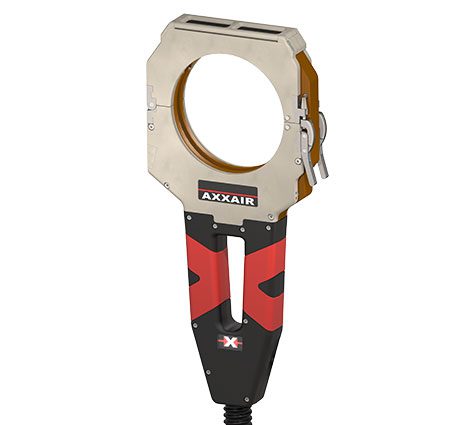

AMX-115 Closed Orbital Weld Head
The AMX-115 closed weld head delivers high-quality, repeatable orbital welds in confined spaces while offering the same precision and performance as the SATFX range. Compatible with multiple industry-standard orbital welding power sources, it provides maximum flexibility for integration into existing welding systems and production environments.
Designed for orbital welding through a simple fusion process without adding filler metal, the AMX-115 is ideal for thin-wall stainless steel tubing from 12–115 mm (0.5–4.5 in.) O.D. and less than 3 mm wall thickness. It is also well suited for oxidation-sensitive nickel and titanium alloys, making it ideal for aerospace, semiconductor, pharmaceutical, chemical processing, food and beverage, and other high-purity applications.
Mobile Nav
| Part No. | AMX-115 |
| Description | Closed welding head with 8 m / 26 ft lead. Water-cooled. See the power source compatibility table below. |
| Tube diameter | 0.5 – 4.5″ / 12 – 115 mm |
| Electrode diameter | 1/16″ or 3/32″ / 1.6 or 2.4 mm |
| Weight with cable | 20.72 lbs / 9.4 kg |
| Duty cycle at 100% | 100 A |
| Max welding current | 150 A |
| Operating temperature | +0°C / + 40 °C (32°F / 104°F) |

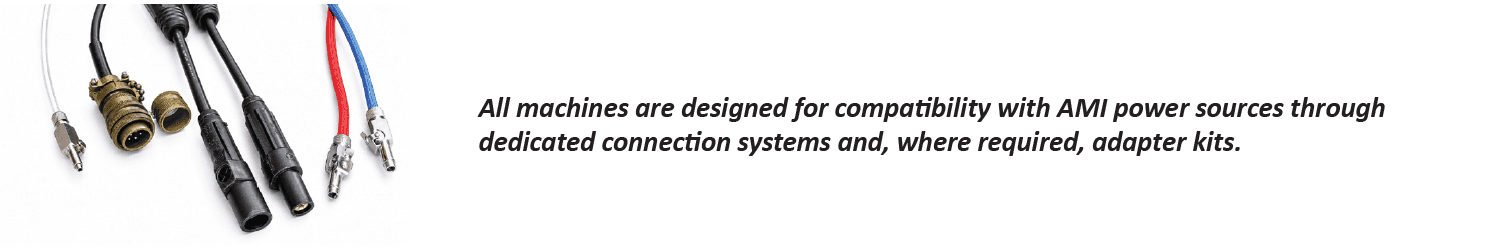

POWER SOURCE COMPATIBILITY
| BRAND | POWER SOURCE | directly compatible | with adapter |
| AMI | AMI-205 with auto-calibration | YES | NO |
| AMI | AMI-207 with auto-calibration | YES | NO |
| AMI | AMI-217 with auto-calibration | YES | NO |
| AMI | AMI-307 | NO | YES: SAFS-ADAMI4 |
| MAGNATECH | TUBEMASTER 514 | NO | YES: 1006365 |
| AXXAIR | AXXAIR SAXX-201 | NO | YES: SAFS-ADAMI1 |
| AXXAIR | AXXAIR SAXX-200 | NO | YES: SAFS-ADAMI1 |
| AXXAIR | AXXAIR SAXX-210 | NO | YES: SAFS-ADAMI1 |
| AXXAIR | AXXAIR SAXX-300 | NO | YES: SAFS-ADAMI1 |
The machines are not compatible with AMI 227, 327, 415, and MAGNATECH Pipemaster 515/516.
- Compatible with selected Magnatech, AMI, and AXXAIR orbital welding power sources
- Narrow-profile design for confined spaces
- Optimized gas diffusion for superior arc stability and consistent weld quality
- Grease-free operation compatible with clean room and high-purity standards
- Water-cooled design for reliable operation
- Stainless steel jaws for quick, tool-free assembly
- Easy cleaning and maintenance for reduced downtime
- 8 m (27 ft) lead length for extended operator mobility
Stainless steel jaws with quick, tool-free assembly. Available in standard and wide clamping options for enhanced rigidity when welding accessories.
Cassettes (accessory): Designed for welding in confined areas. Allow easy positioning on the parts to be welded before securing the central body of the head.
Adjustable clamping force system to ensure consistent machine clamping.
Resources for Your AXXAIR Equipment
Explore AXXAIR closed orbital weld head solutions with our product brochure, or download the user manual for detailed installation, operation, and maintenance information.
AMX: Orbital closed welding heads
